Passthrough Dishwasher with Integrated heat recovery system. Integrated steam condensation system.

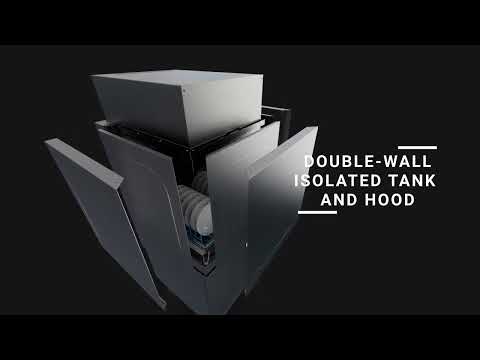

• • Moulded wash tank with rounded corners and double wall
• • Insulated hood.
• • Integrated heat recovery system. (1)
• • Integrated steam condensation system. (*)
• • Full-width wash tank filters.
• • TOUCH control panel with 5 preset wash cycle times.
• • Magnetic microswitch to cut out operation of the
• appliance when door is opened.
• • Useful washing height 41 cm, dish Ø44 cm.
• • Square basket 50x50 cm (supplied with 2 plate baskets,
• 1 flat basket, 2 cutlery holders).
• • Independent lower/upper washing and rinsing arms.
• • Timed manual cold rinse.
• • Washing cycle time 60-90-120-150-180 seconds
• (capacity 1200÷400 pz/h).
• • Displays show the boiler and tank temperature.
• • Countdown of the washing cycle underway in minutes and
• seconds.
• • Standard built-in rinse-aid pump.
• • Self-cleaning cycle (CLN).
• • Booster pump and built-in insulated atmospheric rinse
• tank made in AISI 304L stainless steel.
• • Boiler and tank heating through thermostatically
• protected armoured heating elements (in exchange).
• • The tank water heating is indirect (heating element is not
• inside the tank).
• • Tank capacity lt. 25 and boiler capacity lt. 13.
• • Water consumption per cycle lt. 3,5 - Water pressure input
• ATE 2,0-3,0 - Max temperature of inlet water 50°C.
• • Tank heating element kW 3,0 - Boiler heating element
• kW 6,0 (Cold water input kW 9,0).
• • Washing pump power Hp 1,2.
• • Booster pump power kW 0,30.
• • Noise level at 1 mt. < 70 dbA.
• • Total power kW 6,95.
